XC4VLX25-11SFG363I 500MHz 240 I/O IC FPGA

CHUANGXINDA ELECTRONICS-TECH CO., LIMITED
Contact Now

XC4VLX25-11SFG363I 500MHz 240 I/O IC FPGA

Brand Name : Xilinx Inc.

Model Number : XC4VLX25-11SFG363I

Certification : Lead free / RoHS Compliant

MOQ : 1 pcs

Price : USD 400~1000 pcs

Payment Terms : T/T, Western Union, Paypal, Trade Assurance, Credit Card

Supply Ability : 382 pcs

Delivery Time : 3-5 Day

Packaging Details : International Standard Packaging

Category : Programmable Logic ICs

Condition : Original 100%,Brand New and Original,New

Number of I/Os : 240 I/O

Product : Virtex-4

Package / Case : FBGA-363

Distributed RAM : 168 kbit

Embedded Block RAM - EBR : 1296 kbit

Maximum Operating Frequency : 500 MHz

Service : BOM Kitting

Lead time : In Stock,contact us

Contact Now

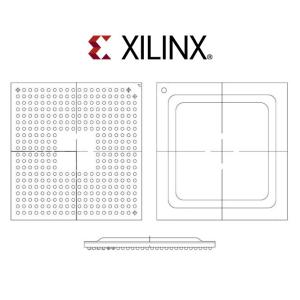

XC4VLX25-11SFG363I IC FPGA FBGA-363 240 I/O Virtex-4

Product Attribute Attribute Value
Xilinx
FPGA - Field Programmable Gate Array
Virtex-4
24192
240 I/O
1.2 V
- 40 C
+ 100 C
SMD/SMT
FBGA-363
Series: XC4VLX25
Brand: Xilinx
Distributed RAM: 168 kbit
Embedded Block RAM - EBR: 1296 kbit
Maximum Operating Frequency: 500 MHz
Moisture Sensitive: Yes
Product Type: FPGA - Field Programmable Gate Array
Factory Pack Quantity: 1
Subcategory: Programmable Logic ICs
Tradename: Virtex
Unit Weight: 5.500445 oz

Summary of Virtex-4 FPGA Features

• Smart RAM Memory Hierarchy
- Distributed RAM
- Dual-port 18-Kbit RAM blocks
· Optional pipeline stages
· Optional programmable FIFO logic automatically remaps RAM signals as FIFO signals
- High-speed memory interface supports DDR and DDR-2 SDRAM, QDR-II, and RLDRAM-II.

• 1.2V Core Voltage

• Flip-Chip Packaging including Pb-Free Package Choices

• Programmable single-ended or differential (LVDS) operation
• Input block with an optional single data rate (SDR) or double data rate (DDR) register
• Output block with an optional SDR or DDR register
• Bidirectional block
• Per-bit deskew circuitry
• Dedicated I/O and regional clocking resources
• Built in data serializer/deserializer


The IOB registers are either edge-triggered D-type flip-flops or level-sensitive latches.
IOBs support the following single-ended standards:
• LVTTL
• LVCMOS (3.3V, 2.5V, 1.8V, and 1.5V)
• PCI (33 and 66 MHz)
• PCI-X
• GTL and GTLP
• HSTL 1.5V and 1.8V (Class I, II, III, and IV)
• SSTL 1.8V and 2.5V (Class I and II)
